B IQF machine series

BL S BL Series Fluidized Quick Freezer

The material in the course of transmission by the strong cold air from the bottom up, boiling in a fluidized bed to be a fluidized state, due to a big contact surface between the strong cold air and the surface of the materials, so it is frozen faster than general blast freezer, and frozen products is monomeric states, features as below:

1. The material of inside frame is high quality SUS304
2. The fan adopts Low temperature type moisture-proof motor
3. Transmission system using frequency converter can be achieved infinitely variable speed.
4. Rational design of air distribution system to make our products more reliable to achieve fluidization freeze.
5. Electronic control system: computer control and manual control are optional.

This freezer is generally used for IQF. Such as:

Vegetable industry : peas, green beans, cut corn, mushrooms, vegetables, cob corn,
     diced carrots, diced onion, cut cauliflower, cut broccoli, cut asparagus

Fruits industry   : blueberries, strawberries, cherries, raspberries, diced pine apples,
  sliced apple.

Sea food industry : cooked shrimp, skin on shrimp, scallops

There are 3 kinds of Fluidized quick freezer, A, B, C type.

Features of A type:
easy to maintain
lower inlet
Two kinds of convey belt, one stage belting structure and two stage belting structure
We also can supply design according to your requirement.


Features of B type:
Separated surfaced frozen from Deep-freezing, good appearance of freezing goods, good quality, low energy consumption.
fan is installed inside of precool device
easy to clean


Features of C type:
Inlet Convey belt, easy to transmit, no stick
PLC control, depanding on different product chose by different signal.
eries Fluidized Quick Freezer

The material in the course of transmission by the strong cold air from the bottom up, boiling in a fluidized bed to be a fluidized state, due to a big contact surface between the strong cold air and the surface of the materials, so it is frozen faster than general blast freezer, and frozen products is monomeric states, features as below:
1. The material of inside frame is high quality SUS304
2. The fan adopts Low temperature type moisture-proof motor
3. Transmission system using frequency converter can be achieved infinitely variable speed.
4. Rational design of air distribution system to make our products more reliable to achieve fluidization freeze.
5. Electronic control system: computer control and manual control are optional.

This freezer is generally used for IQF. Such as:

Vegetable industry : peas, green beans, cut corn, mushrooms, vegetables, cob corn,
     diced carrots, diced onion, cut cauliflower, cut broccoli, cut asparagus

Fruits industry   : blueberries, strawberries, cherries, raspberries, diced pine apples,
  sliced apple.

Sea food industry : cooked shrimp, skin on shrimp, scallops

There are 3 kinds of Fluidized quick freezer, A, B, C type.

Features of A type:
easy to maintain
lower inlet
Two kinds of convey belt, one stage belting structure and two stage belting structure
We also can supply design according to your requirement.


Features of B type:
Separated surfaced frozen from Deep-freezing, good appearance of freezing goods, good quality, low energy consumption.
fan is installed inside of precool device
easy to clean


Features of C type:
Inlet Convey belt, easy to transmit, no stick
PLC control, depanding on different product chose by different signal.

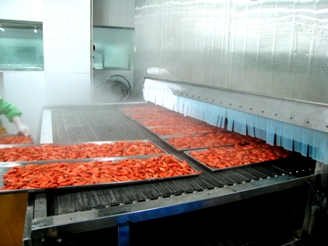

BS series tunnel freezer



BS series tunnel freezer

BS series tunnel freezer with stainless steel mesh belt conveyor materials, materials in the transportation process heat exchange by way of top hair, smooth, inverse fast freezing.

Products in this series freezer for frozen main spring rolls, dumpling and other prepared foods, cut meat, chicken, chicken, chicken wings and other meat, shrimp, fish, shellfish and other seafood, asparagus and other fruit and vegetable products.

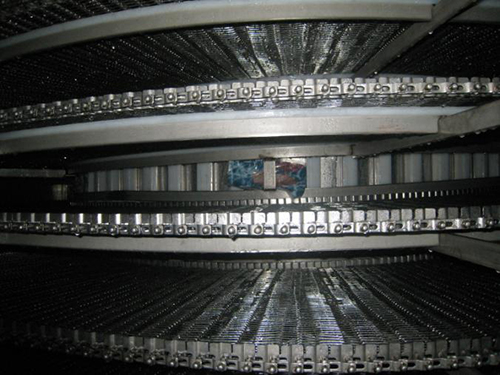

BLX series Spiral Freezer




BLX series Spiral Freezer

BLX series of single-tower Spiral Freezer stainless steel mesh belt, mesh belt automatic self-cleaning dry both to ensure the health and save manpower; rust and corrosion resistant aluminum evaporator heat transfer efficiency higher than other materials, its special way so that the air distribution freeze-dried material depletion process to a minimum, network with spiral motion along the track to make it take up less space; less investment in equipment, installation fast.

BLX series spiral freezer is the development of the twin towers in a single column on the basis of spiral freezer up, in addition to a single tower spiral freezer all the features, the use of the twin towers structure, so that the material to achieve low-low, easy to operate; belt lengthened, production increased; frequency control; transmission stable and reliable.

The device is widely used in a variety of frozen food processing, aquatic products such as: squid, octopus, shrimp, scallops and other fish meat such as: cut meat meatballs fried chicken, fast food categories such as: McDonald's bun dumplings, spring rolls, dumpling zongzi, etc. , as well as other issues such as: ice cream and other artificial crab meat.

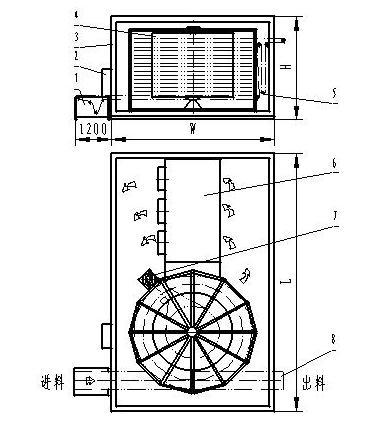

BLX series schematic diagram of a single tower Spiral Freezer

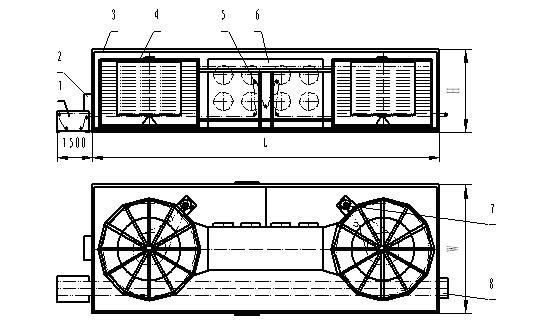

BLX series schematic diagram of the twin towers Spiral Freezer



BG Series Heavy Duty Freezer
